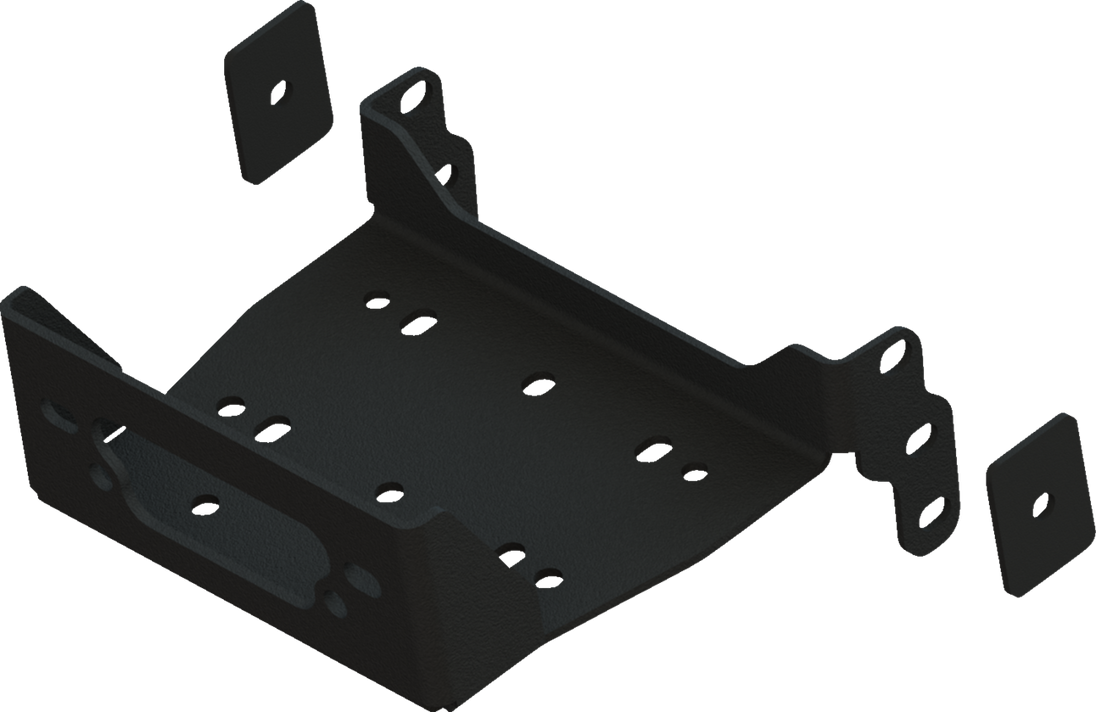

Winch Mount - Yamaha
Winch Mount
Constructed of 3/16" steel
Metal bead blasted and powder coated for best possible finish prep and durability
Very easy to install
Complete installation instructions and mounting hardware included
100% made in USA
Roller fairlead and winch not included.
Designed to work with the following winches:
KFI on VIKING / Viking VI (Bull / Longhorn): ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w (will NOT work with U45w-R2 or SE45w-R2 WIDE winches)
KFI on WOLVERINE: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w (will NOT work with U45-R2, U45w-R2, SE45-R2 or SE45w-R2 winches)
KFI on WOLVERINE X2 and X4: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
WARN on WOLVERINE X2 and X4: AXON 35 / AXON 35-S / AXON 45RC
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s / RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: RT40 / XT40 (require the drilling of two holes)
WARN: Vantage 2000-3000 lb
WARN: Vantage 4000lb (requires the drilling of two holes)
WARN: ProVantage 2500-3500 lb
WARN: ProVantage 4500lbs (requires the drilling of two holes)
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV
SUPERWINCH: LT2000 / UT3000 / Terra 45 / Terra 4500 (SR) / LT4000UTV (require drilling of one-two holes)
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 (2-hole mounted winches will require the drilling of one hole)
CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
BADLAND: 2-hole winches require drilling of holes
