Winch Mount - John Deere

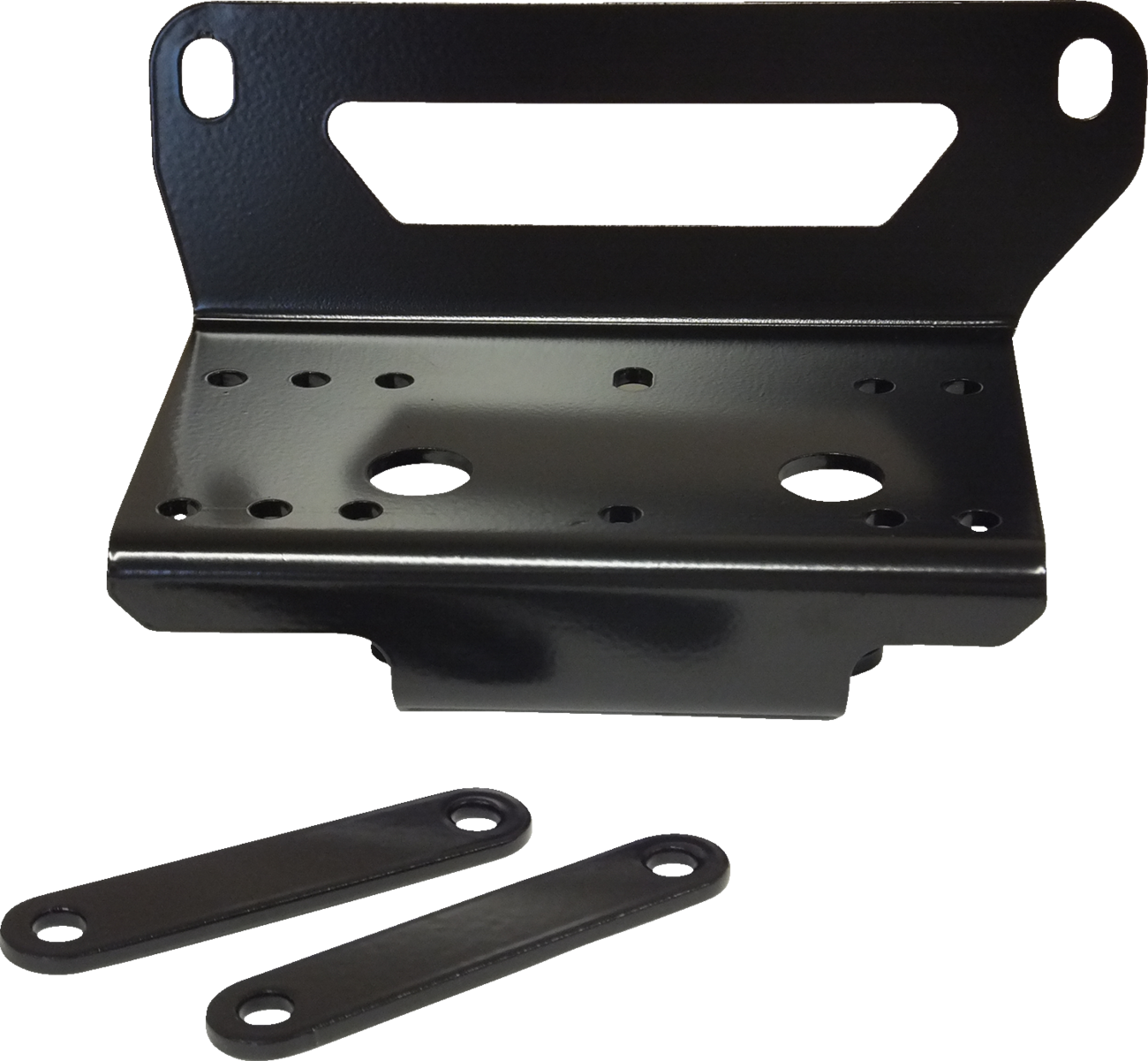

Winch Mount
Constructed of 3/16" grade 50 steel
Plastic trimming may be required for certain models and winches
Metal bead blasted and powder coated for best possible finish prep and durability
Very easy to install
Complete installation instructions included
Mounts winch tucked back behind front bumper
100% made in USA
Roller fairlead and winch not included.
Mount designed to work with the following winches:
KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / AXON 35 / AXON 35-S / AXON 45RC require standard fairlead bracket #101715
WARN: VRX 45 / VRX 45-S / AXON 45 / AXON 45-S / AXON 55 / AXON 55-S require wide fairlead bracket #4505-1073
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s / RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
WARN: Vantage 2000-4000 lb / Provantage 2500-4500 lb
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
BADLAND 2-hole winches: 68146 / 61258 / 61297 / 61840
BADLAND standard winches: 68145 / 61604 / 61257 / 61383
BADLAND WIDE winches: 61384 / 68144 / 61605
CHAMPION 2-hole winches: 10028 / 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
CHAMPION standard winches: 10013 / 10018 / 10020 / 10024 / 12053 / 12503 / 12551 / 13004 / 13050 / 13502 / 14001 / 14051 / 14061 / 14560 / 100129 / 100218 / 100243 / 100335
CHAMPION WIDE winches: 14008 / 14501 / 14551 / 14552 / 40252
