Winch Mount - Yamaha Big Bear

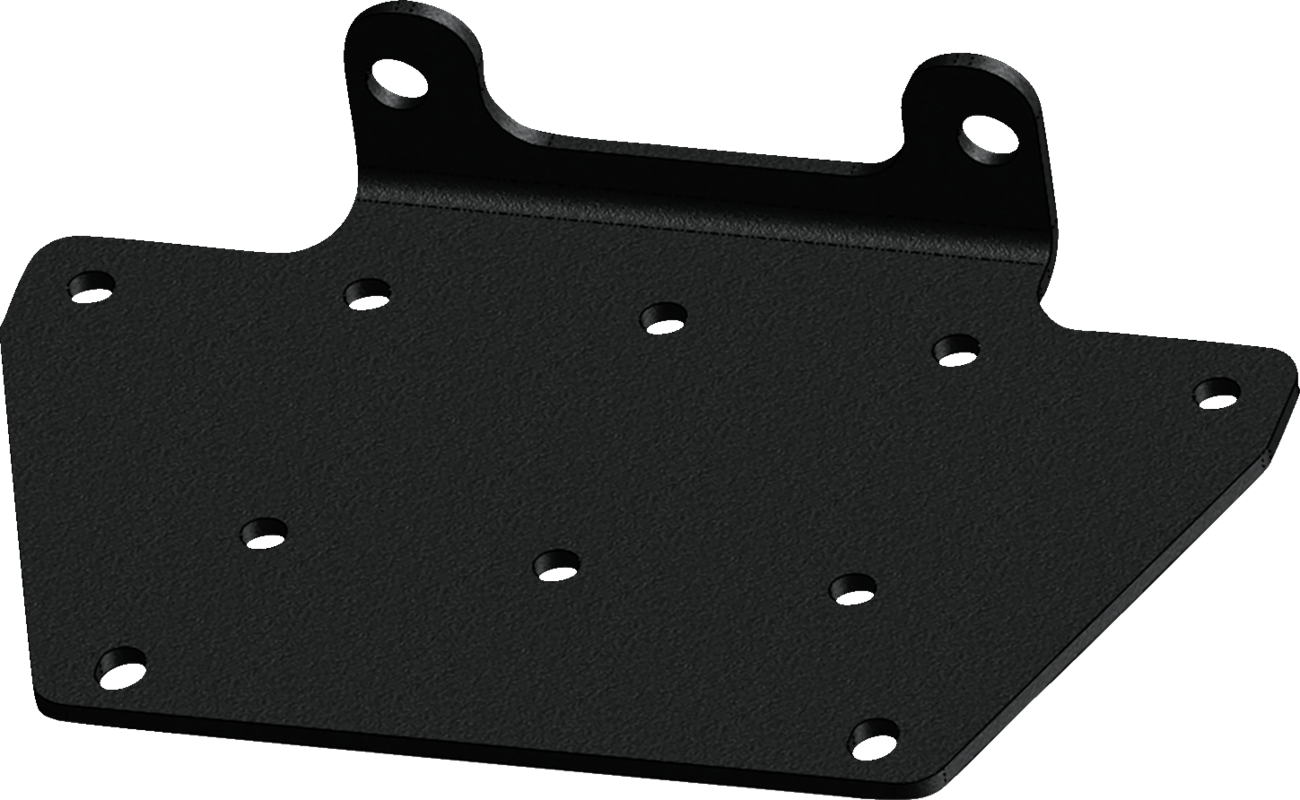

Winch Mount
Constructed of 3/16" steel
Metal bead blasted before powder coated for the best possible finish prep and durability
Very easy to install
Complete installation instructions and mounting hardware included
100% made in the USA
Designed to work with the following winches:
KFI: A2000 / A2500-R2 / A3000 / SE25 / SE35 / AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50 (Requires purchase of #4505-0952)
Warn: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
Warn: U2500 / A2000 / A2500 / 1.5ci / 2.5ci / 2.5ce / 2.5s / 3.0ci / 3.0ce / 3.0s
Warn: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
RAMSEY: ATV2500 / ATV3000
SUPERWINCH, VENOM, MILE MARKER: all ATV winches
BADLAND, CHAMPION: 2-hole winches, standard winches
QUADBOSS: RP25 / RP35
Traveller: 1078088 / 1078302 require roller fairlead with a 4.875" bolt pattern
May also fit other standard ATV winches with a 4-hole bolt pattern of 3.00" x 4.875", 2-hole bolt pattern of 3.100", or ATV fairlead bolt pattern of 4.875"
Roller fairlead and winch not included.
