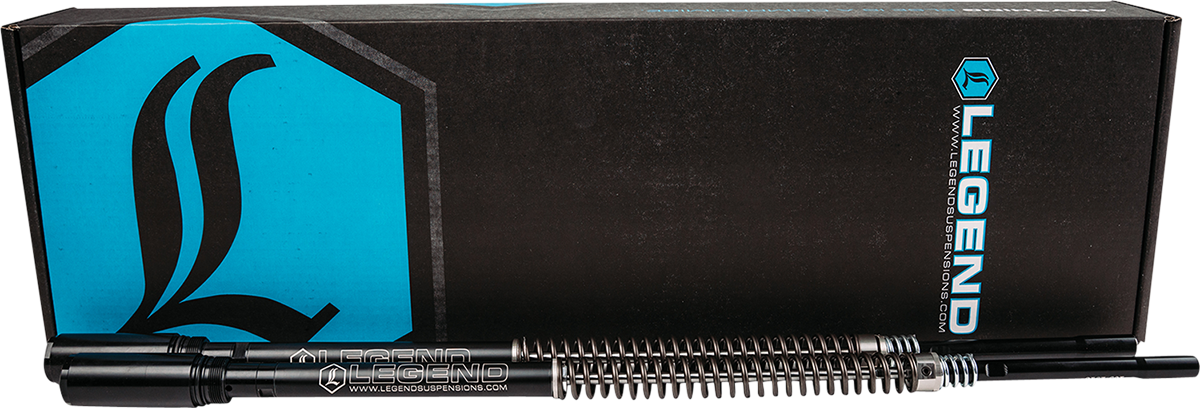

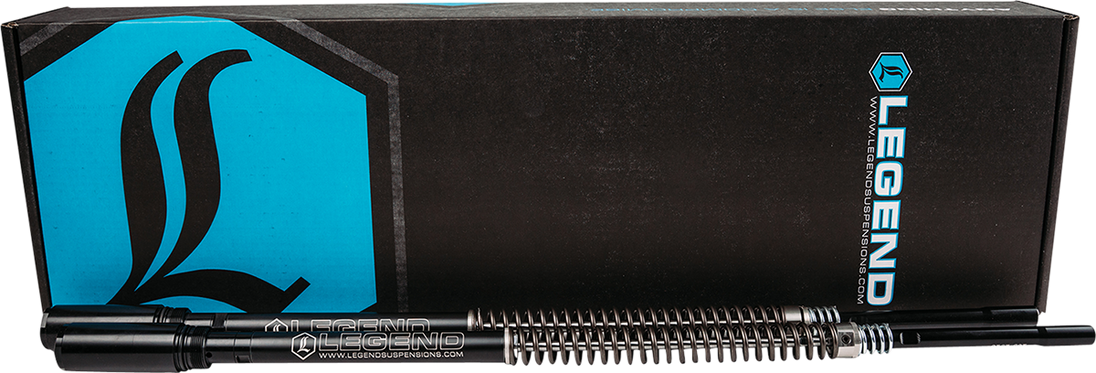

AXEO39TS Higher-Performance Front End Suspension System - 39 mm - +2" Legend AXEO39TS High-Performance Front Suspension System Special Instructions: NO FORK OIL INCLUDED 25PJL NO FORK OIL INCLUDED €‚25PJL Innovative through shaft design is first of its kind in front fork application, not like others offering spring drop in or nitrogen Easy installation Includes two mono-tube damper cartridges and two top out springs Unique through shaft technology so there is no rod pressure at the end of the stroke Utilizes a two-stage management system controlling fluid flow and high pressure Compression and rebound flow rates are managed via a high-flow damper piston and deflective disc set Secondary high pressure control system, using precision load rated wave springs, allows spike overpressure to bypass, protecting the deflective disc’s precision valve opening limits Through shaft eliminates the rod pressure in-and-out issues plus piston rod is always in fluid Two precision linear bearings support both sides of the rod and piston assembly Proprietary performance main spring Machined 303 stainless threaded preload adjuster Increased pre-load range allows fine tuning for various riding styles and weights 5” of travel Ride quality is smooth and controlled Improves stability, cornering, and traction Eliminates front-end dive during aggressive braking and maneuvering Firm feel for high-speed sweeping turns Eliminates bottoming out on large bumps or potholes Reduces dragging pegs Designed for optimum performance with Legend rear suspension system Maintains stock hydraulic bump stop Lifetime Warranty Made by hand in Sturgis, SD USA P65 WARNING: Cancer and Reproductive Harm Fitment:

Vehicle Type	Model	Years
American	VTwin Harley Davidson FXR Super Glide II	1987-1994
American	VTwin Harley Davidson XLH1200	1988-1992
American	VTwin Harley Davidson XLH883	1988-1992
American	VTwin Harley Davidson XLH883DLX Sportster 883 Deluxe	1988-1992
American	VTwin Harley Davidson XLH883HUG Sportster 883 Hugger	1988-1992
